Šifra proizvoda: 196809

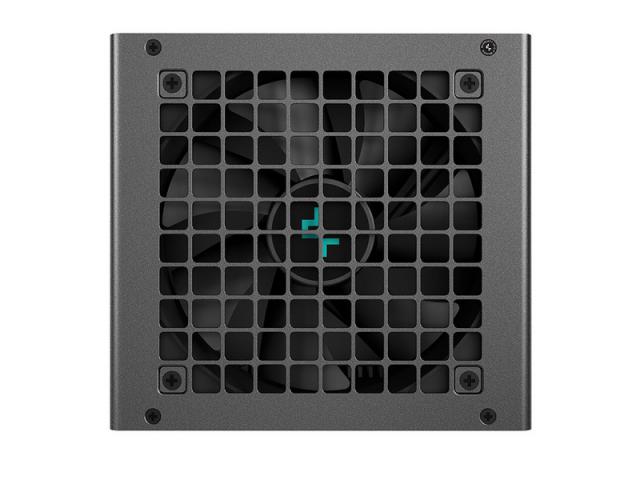

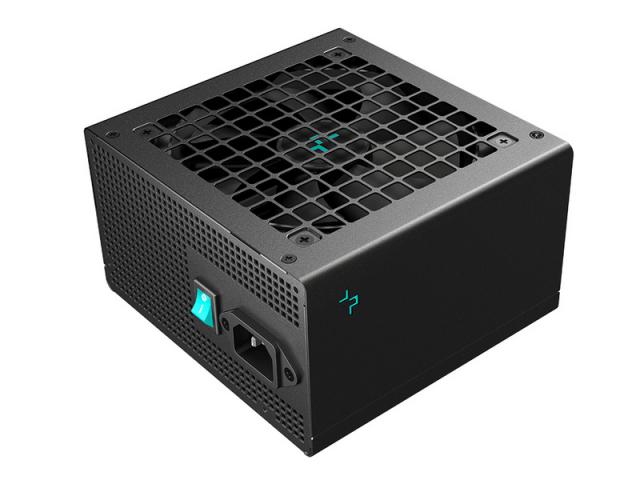

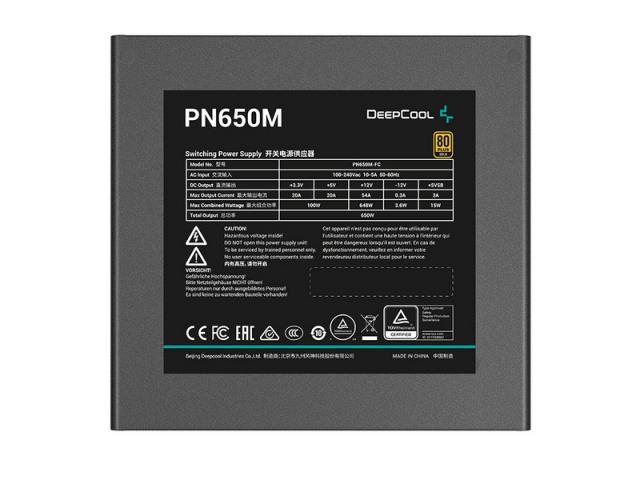

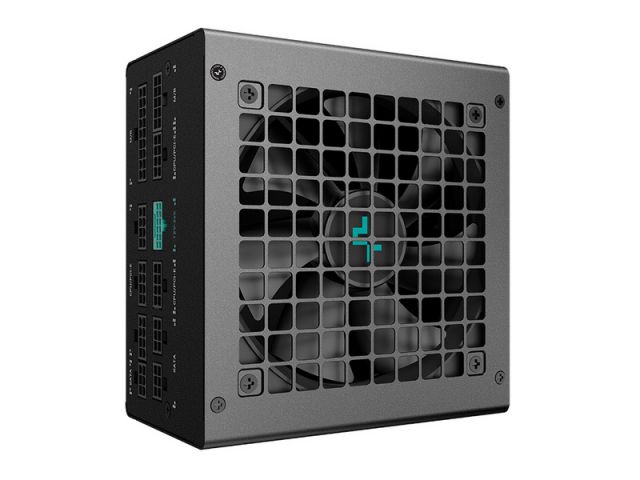

Napajanje DEEPCOOL PN650M, 650 W, modularno, ATX 3.1, PCIe 5.1, 120 mm fan, 80+ Gold, crno

Informacije o proizvodu
119,00
od 9,92 € / mj.Obračun rata Obračun rata

Jamstvo: 60 mjeseci

Provjerite dostupnost u trgovinama
Raspoloživo odmah
Raspoloživo u roku 7-10 dana
Raspoloživo na upit
  • Dostava
  • Plaćanje
  • Post-prodajna podrška
  • Opis

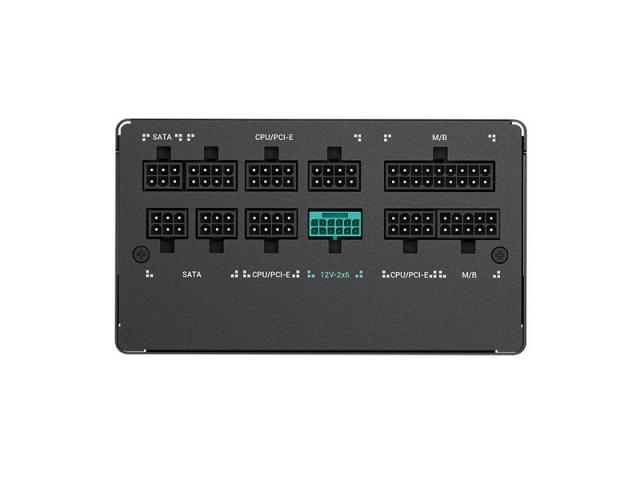

    The DeepCool PN650M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN650M provides stable power for a wide range of modern high-power components.

    FUTURE PROOF
    With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN650M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

    GRACEFUL GOLD
    80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

    POWER YOU CAN TRUST
    Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650M can keep the hold-up time to ? 16 ms under a high load of 80%.

    PCI-E 5.1 POWER
    Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN650M provides up to 450W for modern GPUs.

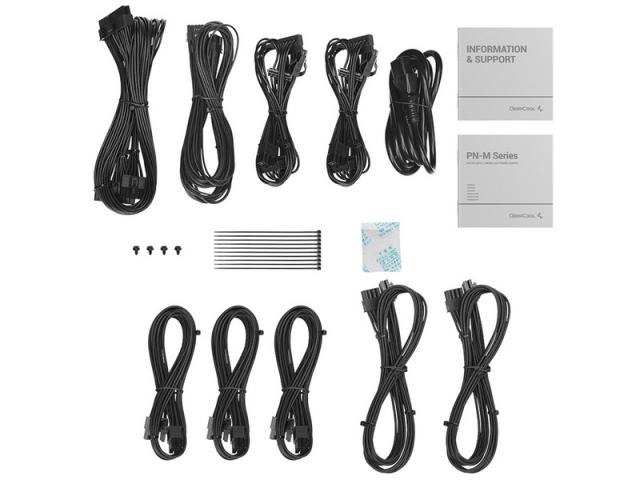

    SLEEVED CABLES
    The PN650M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

    DYNAMIC FDB FAN
    The PN650M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

    HIGH QUALITY BUILD
    Due to the high quality of the parts utilized, the PN650M will operate at altitudes up to 5000 meters above sea level.

    SPECIFICATIONS
    Type: ATX12V V3.1
    Product Dimensions: 150×140×86 mm (W×D×H)
    Efficiency Certification: 80Plus Gold
    Fan Size: 120 mm
    Fan Bearing: FDB (Fluid Dynamic Bearing)
    Topology: Active PFC + Full Bridge SRC LLC + DC to DC
    Capacitors: Japanese Bulk Capacitor
    Power Good Signal: 100-150 ms
    Hold Up Time: ?16 ms (80% load)
    Efficiency: ?90% at typical load (50% load)
    Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
    Operating Temperature: 0 - 40°C
    Regulatory Standards: CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH
    ErP Regulation: ErP 2014
    Environmental Protection: WEEE/?? RoHS/Triman/P65
    MTBF: 100,000 hours
  • Tehnička specifikacija
    Snaga napajanja (R) 650 W
    Efikasnost 80 PLUS (R) 80 Plus Gold
    Modularno (R) da
    Standard napajanja (R) ATX
    Osvjetljenje (R) ne
    Promjer ventilatora (R) 120 mm

Opis

The DeepCool PN650M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN650M provides stable power for a wide range of modern high-power components.

FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN650M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650M can keep the hold-up time to ? 16 ms under a high load of 80%.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN650M provides up to 450W for modern GPUs.

SLEEVED CABLES
The PN650M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

DYNAMIC FDB FAN
The PN650M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN650M will operate at altitudes up to 5000 meters above sea level.

SPECIFICATIONS
Type: ATX12V V3.1
Product Dimensions: 150×140×86 mm (W×D×H)
Efficiency Certification: 80Plus Gold
Fan Size: 120 mm
Fan Bearing: FDB (Fluid Dynamic Bearing)
Topology: Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors: Japanese Bulk Capacitor
Power Good Signal: 100-150 ms
Hold Up Time: ?16 ms (80% load)
Efficiency: ?90% at typical load (50% load)
Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operating Temperature: 0 - 40°C
Regulatory Standards: CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH
ErP Regulation: ErP 2014
Environmental Protection: WEEE/?? RoHS/Triman/P65
MTBF: 100,000 hours

Tehnička specifikacija

Snaga napajanja (R) 650 W
Efikasnost 80 PLUS (R) 80 Plus Gold
Modularno (R) da
Standard napajanja (R) ATX
Osvjetljenje (R) ne
Promjer ventilatora (R) 120 mm
